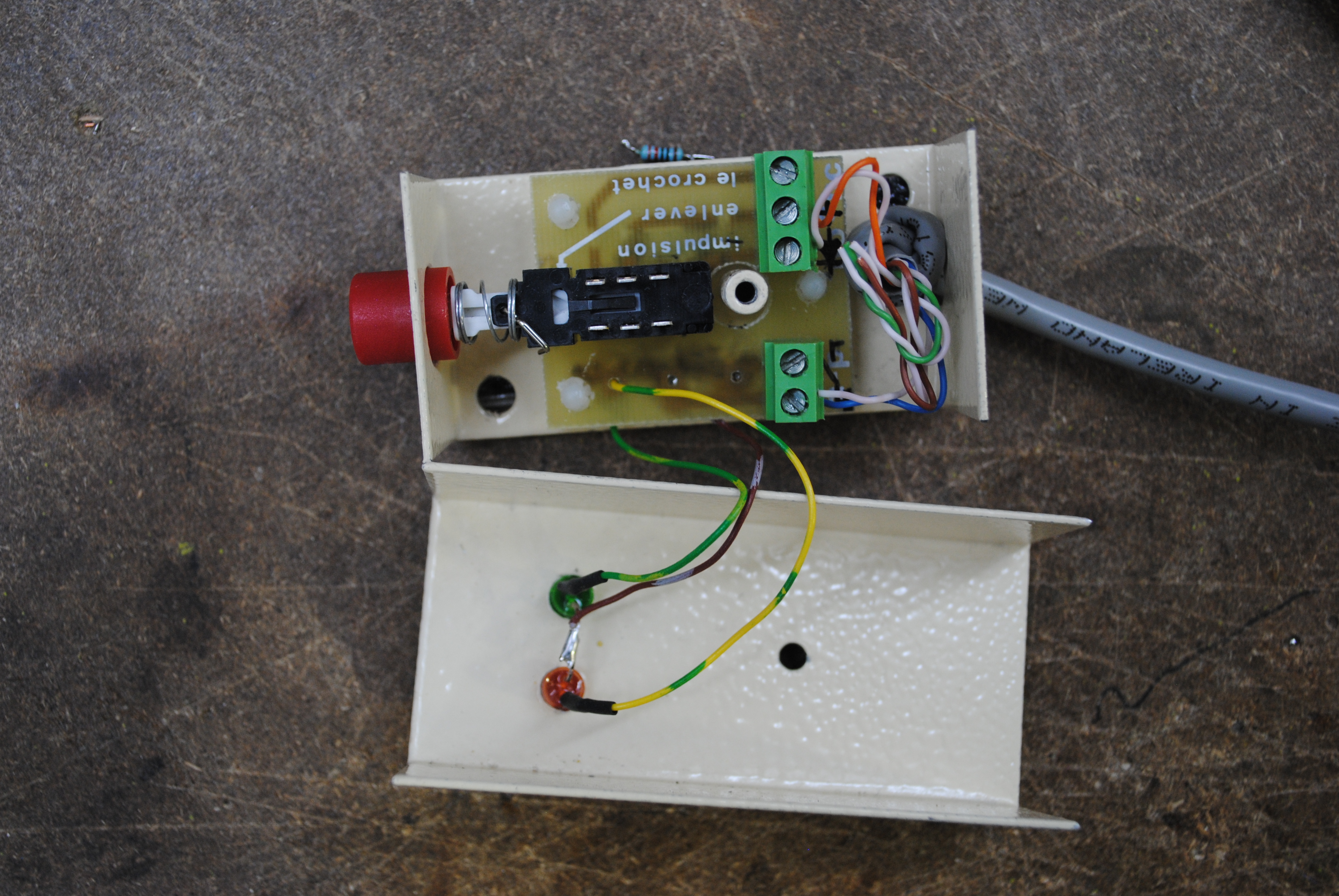

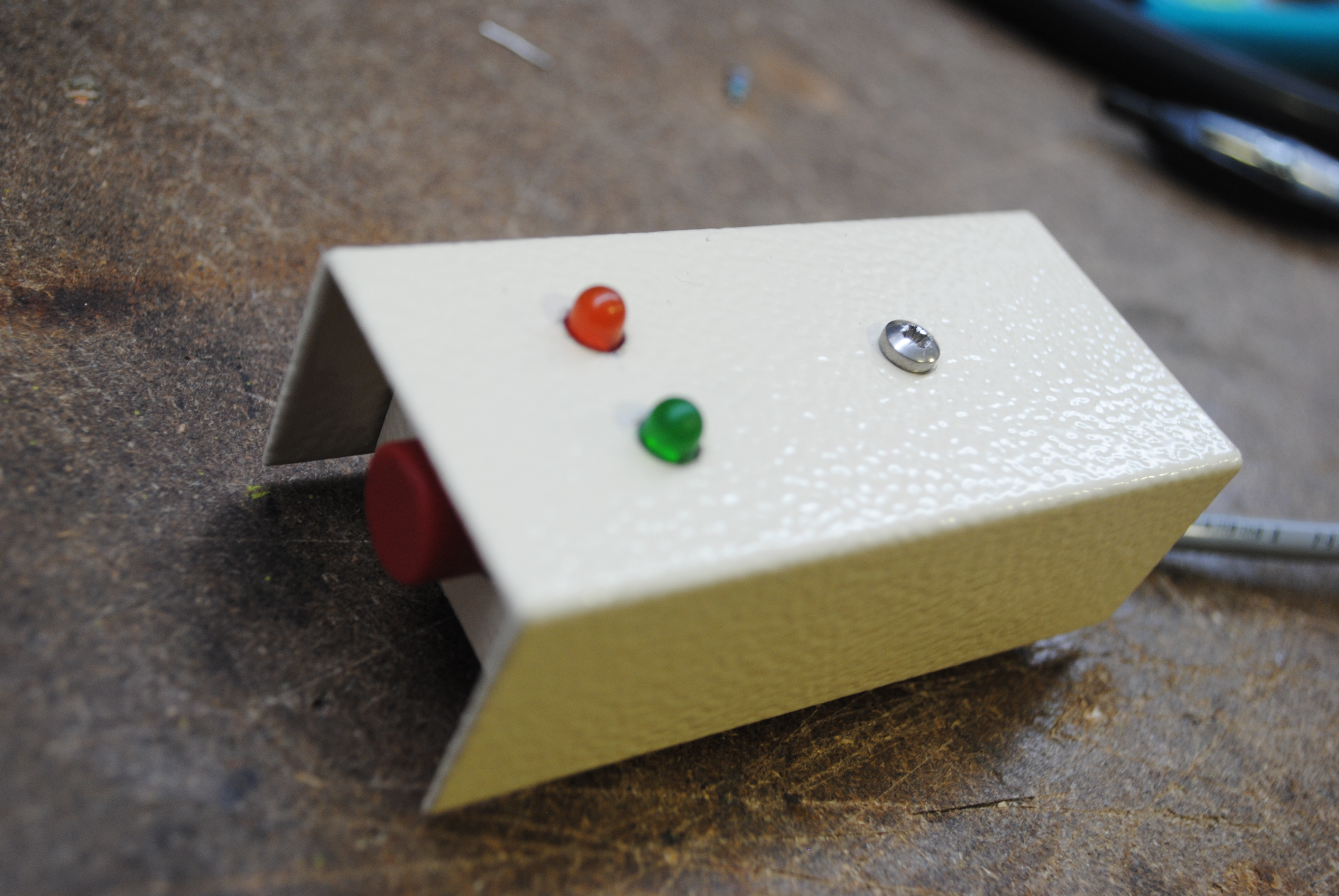

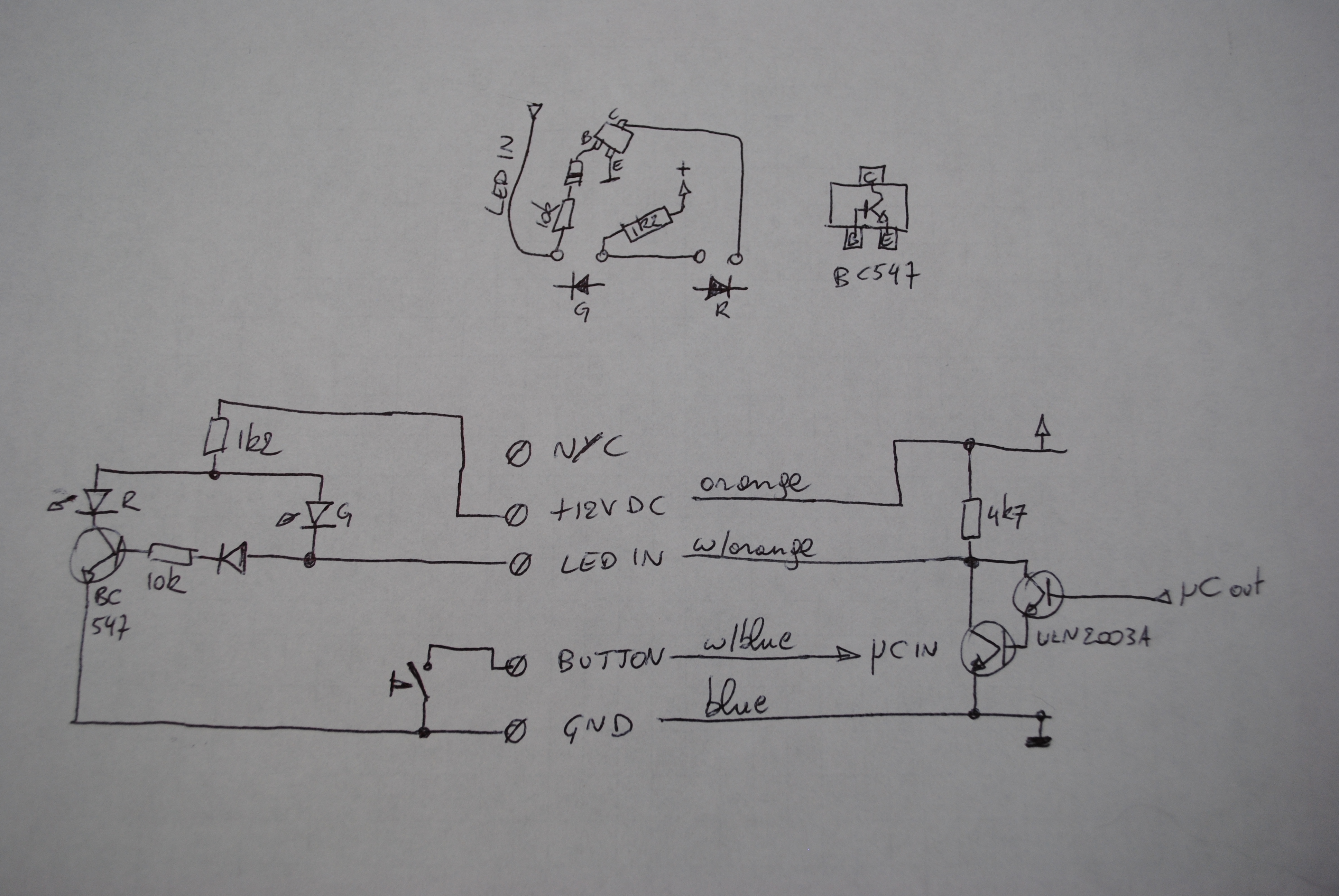

Kids bed button and wake-up lights

· David Steeman · Electronics, VSCP
Kids bed button and wake-up lights

Kids bed button and wake-up lights
Kids bed button and wake-up lights
Kids bed button and wake-up lights

Decision Matrix
#

0x0 0x40 0,0x1E,0x05,0,0,37:00:00:00:00:00:00:00:00:00:00:00:00:00:00:99,0x00,0x01,50 Week, bedlight ON (green) at 7u00. Send Control, TurnOn event for zone 1, subzone 50 0000-01-01 00:00:00 9999-12-31 23:59:59 mtwtf-- *-*-* 07:00:00 0 1 50 0x0 0x40 0,0x1E,0x05,0,0,37:00:00:00:00:00:00:00:00:00:00:00:00:00:00:99,0x00,0x01,50 Weekend, bedlight ON (green) at 8u00. Send Control, TurnOn event for zone 1, subzone 50 0000-01-01 00:00:00 9999-12-31 23:59:59 -----ss *-*-* 08:00:00 0 1 50 0x0 0x40 0,0x1E,0x06,0,0,37:00:00:00:00:00:00:00:00:00:00:00:00:00:00:99,0x00,0x01,50 Week+weekend, bedlight OFF (red) at 18:00. Send Control, TurnOff event for zone 1, subzone 50 0000-01-01 00:00:00 9999-12-31 23:59:59 mtwtfss *-*-* 18:00:00 0 1 50
